Analyzers for Flue Gas Measurement

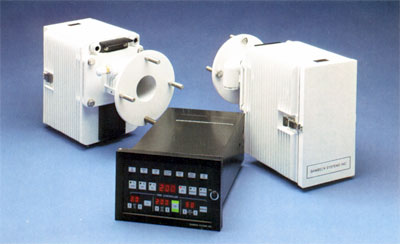

CO-3100 CO Analyzer for Flue Gas Measurement

• Light beam across the stack analyzer designed for combustion control feedback. Extensively used as the primary sensing element in low excess air combustion trim control.

CO-3110, CO - Opacity Analyzer

• The CO-3110 has the additional capability of measuring Opacity.

O2000 Oxygen Analyzer

• Probe with sensing element in the flue gas for measuring excess combustion air.

Low Excess Air Control

CO-3500 Process Heater Stack Damper CO Based Control System

Includes CO analyzer, controller and advanced control strategies to implement CO based trim control into pneumatic, electronic or digital process heater control systems. Monitoring and Control can be implemented in plant DCS.

CO-3400 Gas Fired Boiler CO Based Trim Control System.

Includes the CO analyzer, controller and advanced control strategies to implement CO based trim control into pneumatic, electronic or digital boiler control systems. Monitoring and Control can be implemented in plant DCS.

CO-3410 Gas Fired Boiler CO/Opacity based Trim Control System.

• Boiler trim control System with Opacity (LTA); used with oil fuel.

CO-3600 Solid Fuel Fired Boiler, Multiple Damper System.

Total Combustion Control Systems

TCC-4000 Total Combustion Control Systems Generic Series.
Controllers have different configurations of Dedicated Front Panels, Adjustment Panels, Control Software and I/O Boards. Following are typical controls available:

Boiler Controls

• TCC-4100 Plantmaster, 3 Boiler Masters and Load Allocation
• TCC-4132 Boilermaster, Drum Level, O2 Trim
• TCC-4300 Feedwater, Three Element
• TCC-4340 Drum Level - FGR

Air Controls

• TCC-4200 FD Air, CO/O2 Trim, ID
• TCC-4270 Recovery Boiler Air Control
• TCC-4232 Under Grate Air, At Grate Air, Over Grate Air.
• Combustion Controls
• TCC-4410 Fuel, Air/Trim, ID
• TCC-4420 Fuel, CO/O2 Trim, FD Air
• TCC-4422 Fuel, O2 Trim, FD Air

Burner Management Systems

• BMS-6000 Series of Burner Management Systems
• Panels for flame safeguard with all relays, switches and lights

Engineering Services
With Combustion Engineering Experience Since 1980, We Offer the Following:

• Combustion Consulting and Efficiency Improvement Studies
• Start-up and Maintenance Contracts
• Turnkey System Engineering and Installations
